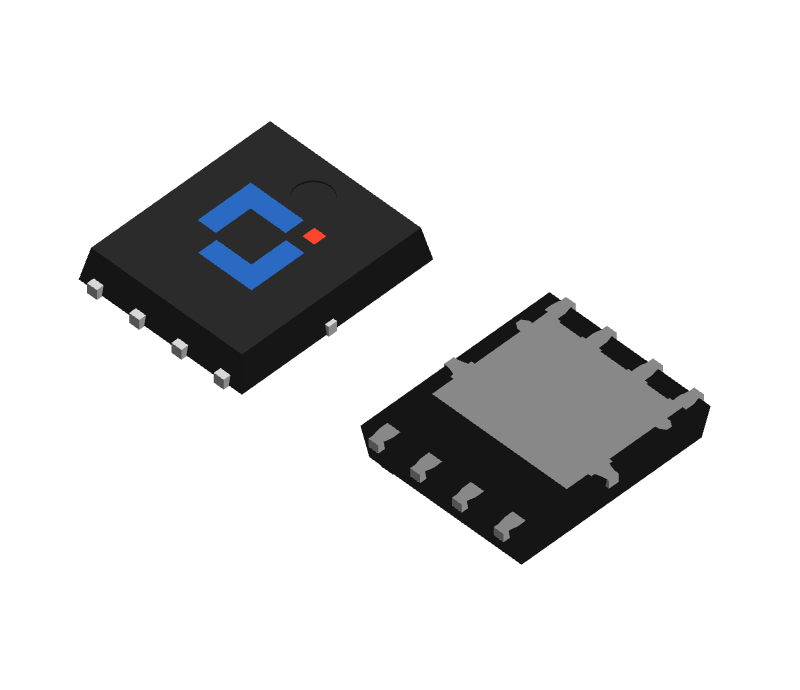

Nch 40V 170A, PDFNWB5x6-8L, SGT MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAC2R5SN04A | Active | No | 40 | ±20 | 170 | 1.4~2.2 | 1.9 | 2.5 | 2.6 | 4.5 | PDFNWB5x6-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAC2R5SN04A | PDFNWB5x6-8L | CJAC2R5SN04A | 5K/Reel;13 inch | 10K | 50K | MSL1 |
